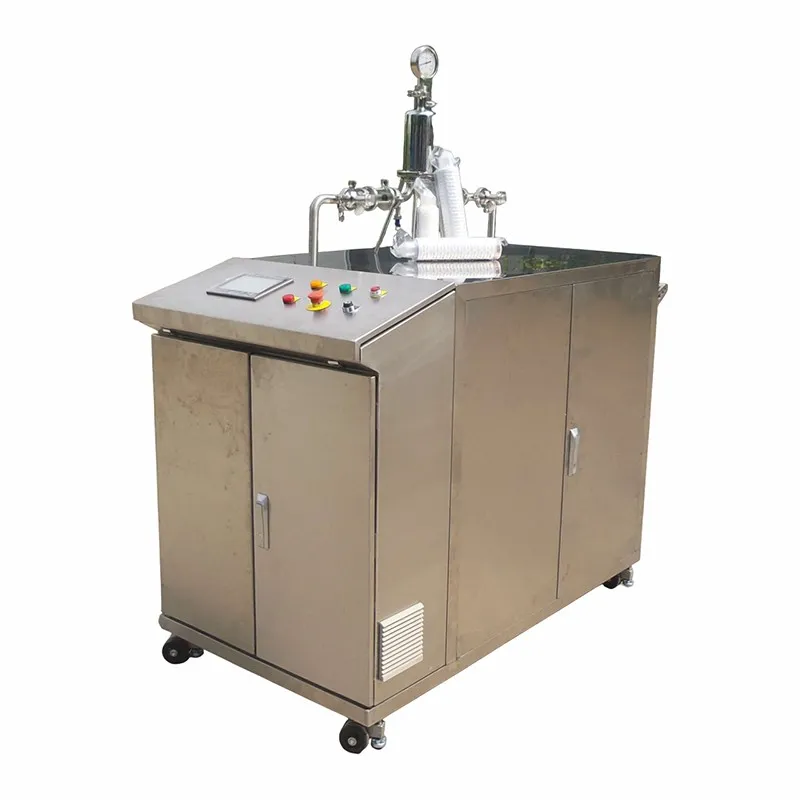

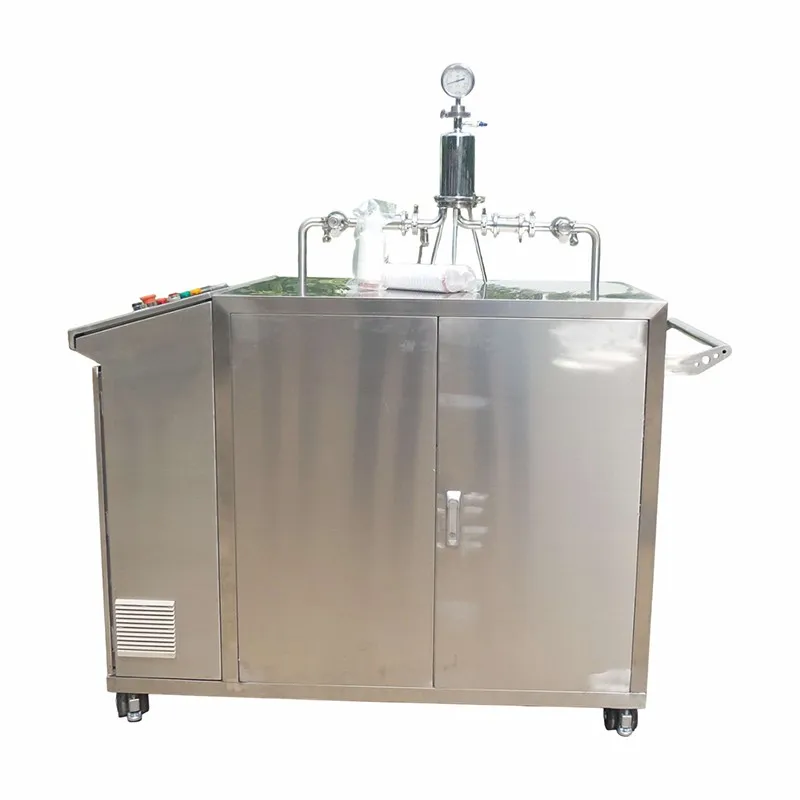

Filter Cleaning System

Combining PAT technology, an automated cleaning method is used to clean the filter cartridge materials used in production filtration, removing surface and internal attachments of the filter cartridge, in order to reuse the filter cartridge as a entire set of equipment .

Pharmaceutical grade hygiene design

Adopting a non-destructive cleaning method

Will not cause a decrease in the filtering effect of the filter element

The filter cartridge has a long service life due to repeated use

Full automatic cleaning process without the need of human intervention

The cleaning effect can meet the requirements of the enterprise and industry standards

Can restore the permeability of the filter element, remove bacterial endotoxins and other thermal substances, and increase the frequency or number of reuses

Save the filter procurement costs and energy consumption

Avoid the risk of human error in operation

1. Titanium rod filter element: 5 inches or more; Aperture: 0.8-5.0 μm or above

2. Folding filter element: 3 inches or more; Aperture: 0.01-1.0 μm or more

3. In situ ultrafiltration device: with a length of 500mm or more; Molecular weight: above 5000 molecular weight

4. Other washable parts need to be designed separately

Enterprises producing：biological vaccine preparations, biological preparations, biochemical preparations, chemical drug preparations, traditional Chinese medicine preparations, oral liquid preparations, intravenous infusion preparations, eye drops, etc

Public system:

Process water system, pure steam system, clean compressed air system, inert gas system and other system filter cartridges or terminal filter cartridges CIP/SIP

Small volume injection:

Filter element or terminal filter element CIP/SIP for materials such as water needles and freeze-dried powder needles with a capacity of less than 50m

Large infusion preparation:

Material system filter or terminal filter CIP/SIP with a capacity of 50ml or more

Drink industry:

Beer, beverages, mineral water, etc

Defoaming – Pre-cleaning - Cleaning solution cleaning - Fine cleaning - Cleaning effect judgment - Cleaning end

Defoamer: Remove bubbles inside the filter element to ensure comprehensive cleaning effect

Pre-cleaning: Remove most of the trapped substances upstream of the filter element and discharge them directly

Cleaning solution washing: enhances the ability to decompose, peel, remove, and dissolve

Fine cleaning: removes substances that are decomposed and peeled off upstream and downstream of the filter element, and directly discharges them. Effect evaluation: determines the cleaning effect through conductivity analysis

Cleaning completed: automatic shutdown and an alarm prompt sended
